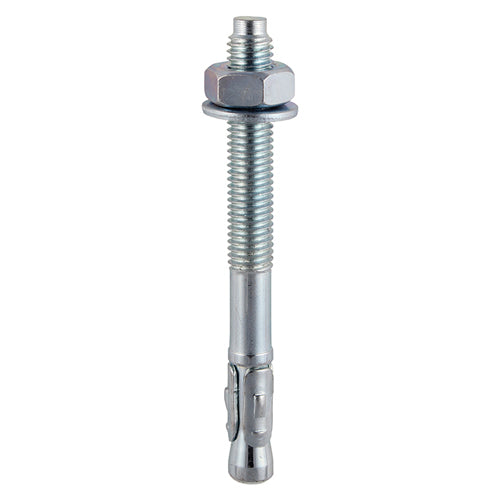

M8 x 80 - Throughbolts - Zinc

Regular price
Sale price
Regular price
Sold out
Unit price

Product Details:

  • Pack Type: Box
  • Pack Quantity: 50 Pieces
  • Barcode: 5055017560707

Product Overview: Throughbolts - Zinc (M8 x 80) provide a versatile and torque-controlled through fixing solution suitable for a wide range of anchoring applications into concrete. Each package includes hex full nuts and washers for your convenience. In case you don't have access to a torque wrench, simply tighten the nut 3 to 4 full turns from finger tight.

Key Features:

  • Chamfered Head Design: Prevents damage to the thread during installation, ensuring a smooth and trouble-free process.
  • Zinc Plated and Passivated: Coated with a layer of zinc and passivated (3-5 microns) to enhance corrosion resistance.
  • Manufactured from Cold Formed Carbon Steel (Grade 5.8): Ensures durability and strength.
  • Special Expansion Clip: Facilitates rapid installation, saving valuable time.

Product Specifications:

  • Brand: TIMCO
  • Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
  • DIN: DIN 125-A, DIN 934
  • Finish: Zinc
  • Fixture Hole Size Ø (mm): 9
  • Head Type: Chamfered
  • Included Items: M8 Hex Full Nuts & Form A Washers
  • Material: Carbon Steel
  • MFT (mm): 25
  • MOQ: 1
  • MOQ Increment: 1
  • Nut Size (mm): M8
  • Nut Socket Size (mm): 13
  • Nut Type: Hex Full
  • Pack Dimensions L x W x H (mm): 162 x 140 x 84
  • Pack Qty: 50 bolts per box
  • Pack Type: Box
  • Pack Weight (kg): 1.627
  • Packs per Carton: 8 boxes per carton
  • Packs per Pallet: 384 cartons per pallet
  • Substrates: Concrete
  • Thread Coverage: Fully Threaded
  • Thread Ø (mm): M8
  • Thread Ø x L (mm): M8 x 80
  • Thread Type: Metric
  • Washer Size (mm): M8 x 17
  • Washer Type: Form A

Versatile and Reliable: Throughbolts - Zinc (M8 x 80) offer versatility and reliability, making them suitable for various concrete anchoring applications.

Damage Prevention: The chamfered head design prevents thread damage during installation, ensuring optimal performance.

Corrosion Resistance: Zinc plating and passivation offer excellent protection against corrosion, extending the product's lifespan.

Quick and Efficient Installation: The special expansion clip enables rapid installation, saving both time and effort.

Choose Throughbolts - Zinc (M8 x 80) for your anchoring needs, providing a secure and efficient solution for a wide range of concrete applications.
