Product Details:

  • Pack Type: Box
  • Pack Quantity: 100 Pieces
  • Barcode: 5055017560684

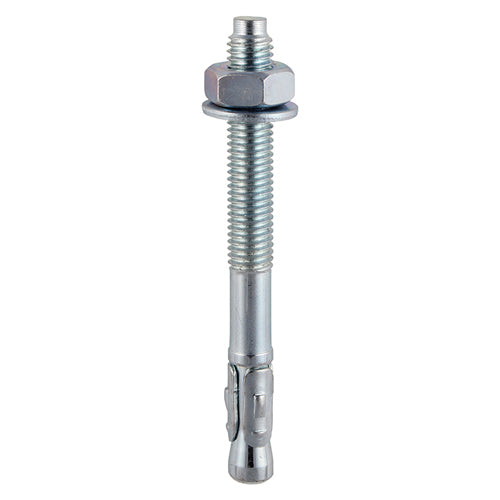

Product Overview: Throughbolts - Zinc (M8 x 50) are a versatile and torque-controlled through fixing solution designed for a wide range of anchoring applications into concrete. This product comes complete with a hex full nut and washer, ensuring a secure and reliable installation. Please note that if you don't have a torque wrench, it's recommended to tighten the nut 3 to 4 full turns from finger tight.

Key Features:

  • Chamfered Head Design: Prevents damage to the thread during installation, ensuring smooth and trouble-free use.
  • Zinc Plated and Passivated: Coated with a layer of zinc and passivated (3-5 microns) for enhanced corrosion resistance.
  • Manufactured from Cold Formed Carbon Steel (Grade 5.8): Ensures robustness and durability.
  • Special Expansion Clip: Facilitates rapid installation, saving time and effort.

Product Specifications:

  • Brand: TIMCO
  • Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
  • DIN: DIN 125-A, DIN 934
  • Finish: Zinc
  • Fixture Hole Size Ø (mm): 9
  • Head Type: Chamfered
  • Included Items: M8 Hex Full Nuts & Form A Washers
  • Material: Carbon Steel
  • MFT (mm): 5
  • MOQ: 1
  • MOQ Increment: 1
  • Nut Size (mm): M8
  • Nut Socket Size (mm): 13
  • Nut Type: Hex Full
  • Pack Dimensions L x W x H (mm): 138 x 118 x 80
  • Pack Qty: 100 bolts per box
  • Pack Type: Box
  • Pack Weight (kg): 2.306
  • Packs per Carton: 8 boxes per carton
  • Packs per Pallet: 320 cartons per pallet
  • Substrates: Concrete
  • Thread Coverage: Fully Threaded
  • Thread Ø (mm): M8
  • Thread Ø x L (mm): M8 x 50
  • Thread Type: Metric
  • Washer Size (mm): M8 x 17
  • Washer Type: Form A

Versatile and Reliable: Throughbolts - Zinc (M8 x 50) offer versatility and reliability, making them suitable for a wide range of concrete anchoring applications.

Damage Prevention: The chamfered head design prevents thread damage during installation, ensuring optimal performance.

Corrosion Resistance: Zinc plating and passivation provide protection against corrosion, extending the product's lifespan.

Quick Installation: The special expansion clip enables rapid installation, saving both time and effort.

Choose Throughbolts - Zinc (M8 x 50) for your anchoring needs, delivering a secure and efficient solution in various concrete applications.
