Product Details:
- Pack Type: Box
- Pack Quantity: 50 Pieces
- Barcode: 5055017560721

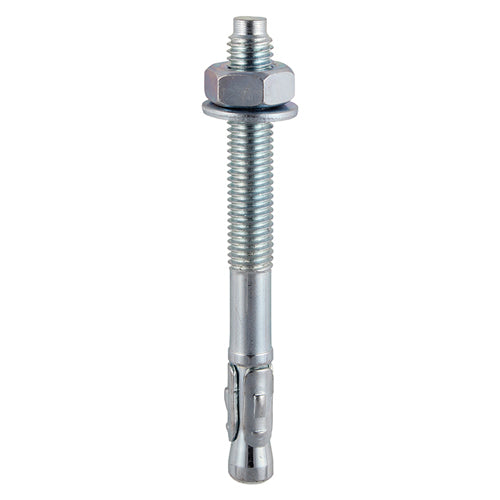

Product Overview: Throughbolts - Zinc (M8 x 130) are versatile, torque-controlled through fixings suitable for a wide range of anchoring applications in concrete. Each package includes hex full nuts and Form A washers for convenient installation. Note: In the absence of a torque wrench, tighten the nut 3 to 4 full turns from finger tight for optimal performance.
Key Features:
- Chamfered Head Design: The chamfered head design prevents damage to the thread during installation, ensuring a secure fit.
- Zinc Plated and Passivated: These throughbolts are coated with zinc and passivated (3-5 microns) for improved corrosion resistance.
- Manufactured from Cold-Formed Carbon Steel: Crafted from cold-formed carbon steel (grade 5.8) for durability and reliability.
- Special Expansion Clip: Equipped with a special expansion clip to facilitate rapid installation.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
- DIN: DIN 125-A, DIN 934
- Fixture Hole Size Ø (mm): 9
- Finish: Zinc
- Head Type: Chamfered
- Included Items: M8 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 75
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M8
- Nut Socket Size (mm): 13
- Nut Type: Hex Full
- Pack Dimensions L x W x H (mm): 162 x 140 x 84
- Pack Qty: 50 throughbolts per box
- Pack Type: Box
- Pack Weight (kg): 2.301
- Packs per Carton: 6 boxes per carton
- Packs per Pallet: 162 cartons per pallet
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M8
- Thread Ø x L (mm): M8 x 130
- Thread Type: Metric
- Washer Size (mm): M8 x 17
- Washer Type: Form A
Versatile Anchoring Solution: Throughbolts - Zinc (M8 x 130) provide a versatile and reliable anchoring solution for various concrete applications.
Durable Construction: Manufactured from cold-formed carbon steel and zinc plated for corrosion resistance, ensuring longevity and performance.
Efficient Installation: The special expansion clip design allows for rapid and secure installation, making your projects more efficient.
Convenient Packaging: Each box contains 50 throughbolts, complete with nuts and washers, making them easy to store and transport.
Select Throughbolts - Zinc (M8 x 130) for your anchoring needs, offering durability, corrosion resistance, and ease of installation in a wide range of concrete applications.
