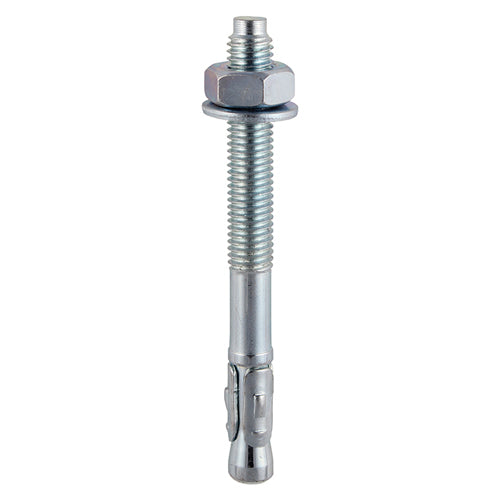

Throughbolts - Zinc (M16 x 105)
- Product Code: 16105TB
- Pack Type: Box
- Pack Quantity: 25 Pieces
- Barcode: 5055017560820
Product Overview: The 16105TB Throughbolts are robust and torque-controlled fasteners designed for a wide range of anchoring applications in concrete. They come complete with hex full nuts and washers for secure installation. Note: If you don't have a torque wrench, tighten the nut 3 to 4 full turns from finger tight.
Key Features:
- Chamfered head design to prevent thread damage during installation.
- Zinc plated and passivated (3-5 microns) for enhanced corrosion resistance.
- Manufactured from cold-formed carbon steel (grade 5.8) for durability.
- Special expansion clip design enables rapid installation.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 (Clean, dry & low humidity environments)
- DIN: DIN 125-A, DIN 934
- Finish: Zinc
- Fixture Hole Size Ø (mm): 18
- Head Type: Chamfered
- Included Items: M16 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 5
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M16
- Nut Socket Size (mm): 24
- Nut Type: Hex Full
- Pack Dimensions (mm): 162 x 140 x 84
- Pack Weight (kg): 4.46
- Pack Qty: 25
- Pack Type: Box
- Packs per Carton: 4
- Packs per Pallet: 160
- Substrates: Concrete
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M16
- Thread Ø x L (mm): M16 x 105
- Thread Type: Metric
- Washer Size (mm): M16 x 30
- Washer Type: Form A
The 16105TB Throughbolts are your reliable choice for secure anchoring into concrete, designed to withstand tough conditions while providing corrosion resistance. The chamfered head design and special expansion clip make installation efficient and dependable.
