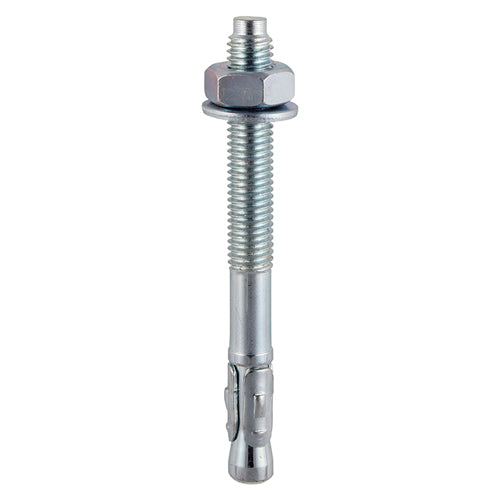

Throughbolts - Zinc - M12 x 80
- Product Code: 1280TB
- Pack Type: Box
- Pack Quantity: 50 Pieces
- Barcode: 5055017560776
Product Overview:
- The 1280TB Zinc Throughbolts are versatile and torque-controlled fasteners designed for a wide range of anchoring applications into concrete.
- Each pack includes hex full nuts and Form A washers for complete installation.
- Note: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger-tight.
Key Features:
- Chamfered head design prevents damage to the thread during installation.
- Zinc plated and passivated with a coating of 3-5 microns for enhanced corrosion resistance.
- Manufactured from cold-formed carbon steel with a grade of 5.8, ensuring durability and reliability.
- Special expansion clip allows for rapid installation.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments.
- DIN: DIN 125-A, DIN 934
- Finish: Zinc
- Fixture Hole Size Ø (mm): 14
- Head Type: Chamfered
- Included Items: M12 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 5
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M12
- Nut Socket Size (mm): 19
- Nut Type: Hex Full
- Pack Dimensions L x W x H (mm): 162 x 140 x 84
- Pack Qty: 50
- Pack Type: Box
- Pack Weight (kg): 3.926
- Packs per Carton: 4
- Packs per Pallet: 168
- Substrates: Concrete
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M12
- Thread Ø x L (mm): M12 x 80
- Thread Type: Metric
- Washer Size (mm): M12 x 24
- Washer Type: Form A
The 1280TB Zinc Throughbolts are reliable and durable fasteners suitable for a variety of anchoring tasks in concrete. Their chamfered head design, zinc plating, and special expansion clip make them ideal for secure and efficient installations, even in challenging environments.
