M12 x 180 - Throughbolts - Zinc

Vendor
TimCo
Regular price
€47,60
Sale price
€47,60
Regular price
Sold out
Unit price
per
VAT EXCLUDED

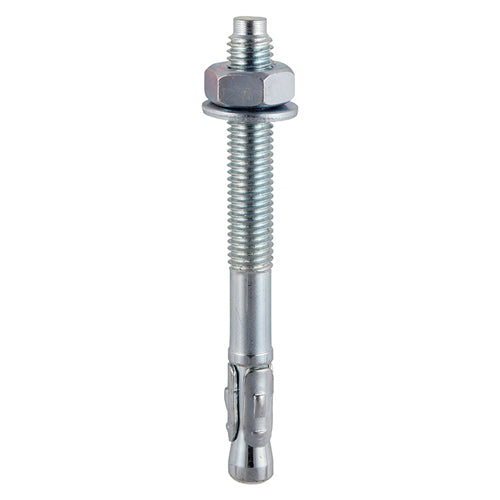

Throughbolts - Zinc - M12 x 180

  • Product Code: 12180TB
  • Pack Type: Box
  • Pack Quantity: 25 Pieces
  • Barcode: 5055017560813

Product Overview:

  • The 12180TB Throughbolts are versatile and torque-controlled fasteners designed for a wide range of anchoring applications into concrete.
  • Each pack includes hex full nuts and Form A washers for complete installation.
  • Note: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger-tight.

Key Features:

  • Chamfered head design prevents damage to the thread during installation.
  • Zinc plated and passivated with a coating of 3-5 microns for enhanced corrosion resistance.
  • Manufactured from cold-formed carbon steel with a grade of 5.8, ensuring durability and reliability.
  • Special expansion clip allows for rapid installation.

Product Specifications:

  • Brand: TIMCO
  • Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments.
  • DIN: DIN 125-A, DIN 934
  • Finish: Zinc
  • Fixture Hole Size Ø (mm): 14
  • Head Type: Chamfered
  • Included Items: M12 Hex Full Nuts & Form A Washers
  • Material: Carbon Steel
  • MFT (mm): 105
  • MOQ: 1
  • MOQ Increment: 1
  • Nut Size (mm): M12
  • Nut Socket Size (mm): 19
  • Nut Type: Hex Full
  • Pack Dimensions L x W x H (mm): 234 x 94 x 86
  • Pack Qty: 25
  • Pack Type: Box
  • Pack Weight (kg): 3.791
  • Packs per Carton: 4
  • Packs per Pallet: 180
  • Substrates: Concrete
  • Thread Coverage: Fully Threaded
  • Thread Ø (mm): M12
  • Thread Ø x L (mm): M12 x 180
  • Thread Type: Metric
  • Washer Size (mm): M12 x 24
  • Washer Type: Form A

The 12180TB Zinc Throughbolts are reliable and durable fasteners suitable for a variety of anchoring tasks in concrete. Their chamfered head design, zinc plating, and special expansion clip make them ideal for secure and efficient installations, even in challenging environments.
