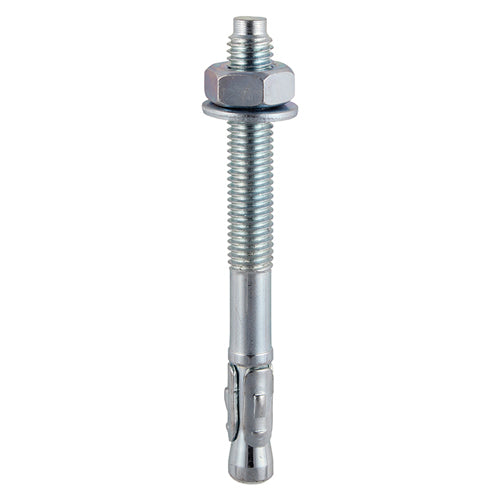

M12 x 100 - Throughbolts - Zinc

Regular price
Sale price
Regular price
Sold out
Unit price

  • Product Code: 12100TB
  • Pack Type: Box
  • Pack Quantity: 25 Pieces
  • Barcode: 5055331820457

Product Overview:

  • The 12100TB Throughbolts are a versatile and torque-controlled anchoring solution designed for a wide range of applications in concrete.
  • Each pack includes hex full nuts and Form A washers for a complete installation.
  • Note: If you don't have a torque wrench, tighten the nut 3 to 4 full turns from finger tight for optimal performance.

Key Features:

  • Chamfered head design: Prevents damage to the thread during installation.
  • Zinc plated and passivated (3-5 microns): Enhances corrosion resistance.
  • Manufactured from cold-formed carbon steel (grade 5.8): Ensures durability and strength.
  • Special expansion clip: Facilitates rapid and secure installation.

Product Specifications:

  • Brand: TIMCO
  • Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments.
  • DIN: DIN 125-A, DIN 934
  • Fixture Hole Size Ø (mm): 14
  • Head Type: Chamfered
  • Material: Carbon Steel
  • Minimum Fixture Thickness (MFT) (mm): 25

Nut and Washer Details:

  • Nut Size (mm): M12
  • Nut Socket Size (mm): 19
  • Nut Type: Hex Full
  • Washer Size (mm): M12 x 24
  • Washer Type: Form A

Pack Details:

  • Pack Dimensions L x W x H (mm): 162 x 140 x 84
  • Pack Weight (kg): 2.369
  • Packs per Carton: 6
  • Packs per Pallet: 270


  • Suitable for anchoring in concrete.

Thread Details:

  • Thread Coverage: Fully Threaded
  • Thread Ø (mm): M12
  • Thread Ø x L (mm): M12 x 100
  • Thread Type: Metric

The 12100TB Throughbolts in zinc provide a reliable and secure anchoring solution for various applications in concrete. With features like a chamfered head design and zinc plating, they are designed for durability and ease of installation.
