Product Details:
- Pack Type: Box
- Pack Quantity: 50 Pieces
- Barcode: 5055017560745

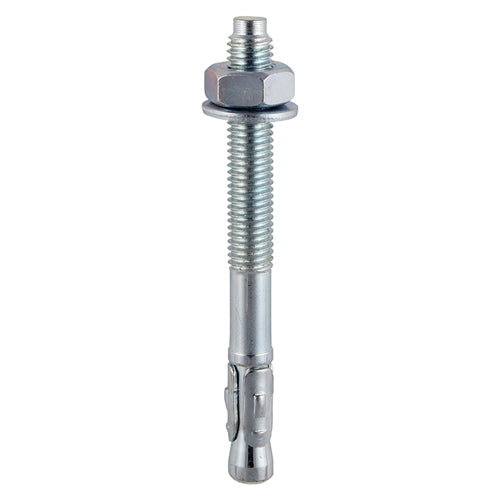

Product Overview: Throughbolts - Zinc (M10 x 75) are versatile and torque-controlled through fixings designed for a wide range of anchoring applications into concrete. Each package includes hex full nuts and washers for comprehensive installation. Please note that if a torque wrench is unavailable, it is recommended to tighten the nut 3 to 4 full turns from finger-tight.
Key Features:
- Chamfered head design prevents damage to thread during installation
- Zinc-plated and passivated (3-5 microns)
- Manufactured from cold-formed carbon steel (grade 5.8)
- Special expansion clip enables rapid installation
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 (Suitable for clean, dry, and low humidity environments)
- DIN: DIN 125-A, DIN 934
- Feature 1: Chamfered head design to prevent damage to thread during installation
- Feature 2: Zinc plated and passivated (3-5 microns)
- Feature 3: Manufactured from cold-formed carbon steel (grade 5.8)
- Feature 4: Special expansion clip for rapid installation
- Finish: Zinc
- Fixture Hole Size Ø (mm): 12
- Head Type: Chamfered
- Included Items: M10 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 10
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M10
- Nut Socket Size (mm): 17
- Nut Type: Hex Full
- Pack Dimensions L x W x H (mm): 164 x 92 x 92
- Pack Weight (kg): 2.46
- Packs per Carton: 6
- Packs per Pallet: 270
- Substrates: Concrete
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M10
- Thread Ø x L (mm): M10 x 75
- Thread Type: Metric
- Washer Size (mm): M10 x 21
- Washer Type: Form A
Throughbolts - Zinc (M10 x 75) provide a reliable and efficient solution for your anchoring needs into concrete. Their exceptional features make them suitable for various applications, ensuring secure and lasting installations.
