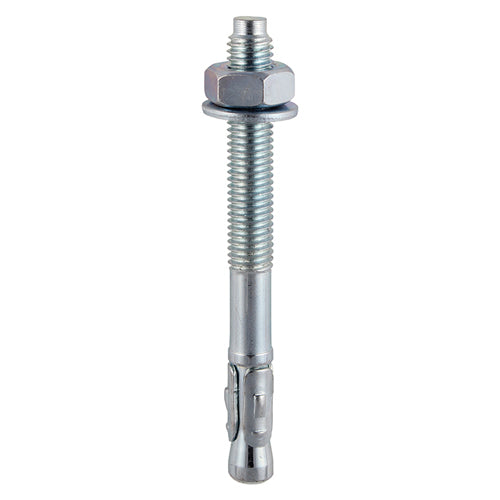

M10 x 100 - Throughbolts - Zinc

Regular price
Sale price
Regular price
Sold out
Unit price

Product Details:

  • Pack Type: Box
  • Pack Quantity: 50 Pieces
  • Barcode: 5055017560752

Product Overview: Throughbolts - Zinc (M10 x 100) are versatile torque-controlled through fixings designed for a wide range of anchoring applications into concrete. Each pack includes hex full nuts and washers for a complete installation. Please note that if you don't have a torque wrench available, you should tighten the nut 3 to 4 full turns from finger-tight.

Key Features:

  • Chamfered Head Design: The chamfered head design prevents damage to the thread during installation.
  • Zinc Plated and Passivated: These throughbolts are zinc plated and passivated with a thickness of 3-5 microns for enhanced corrosion resistance.
  • Manufactured from Cold-Formed Carbon Steel: Crafted from grade 5.8 cold-formed carbon steel, ensuring durability and strength.
  • Special Expansion Clip: Equipped with a special expansion clip for rapid and secure installation.

Product Specifications:

  • Brand: TIMCO
  • Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
  • DIN: DIN 125-A, DIN 934
  • Fixture Hole Size Ø (mm): 12
  • Finish: Zinc
  • Head Type: Chamfered
  • Included Items: M10 Hex Full Nuts & Form A Washers
  • Material: Carbon Steel
  • MFT (mm): 35
  • MOQ: 1
  • MOQ Increment: 1
  • Nut Size (mm): M10
  • Nut Socket Size (mm): 17
  • Nut Type: Hex Full
  • Pack Dimensions L x W x H (mm): 182 x 98 x 90
  • Pack Weight (kg): 3.06
  • Packs per Carton: 6 boxes per carton
  • Packs per Pallet: 240 cartons per pallet
  • Substrates: Concrete
  • Thread Coverage: Fully Threaded
  • Thread Ø (mm): M10
  • Thread Ø x L (mm): M10 x 100
  • Thread Type: Metric
  • Washer Size (mm): M10 x 21
  • Washer Type: Form A

Versatile Anchoring: Throughbolts - Zinc (M10 x 100) are suitable for a wide range of anchoring applications into concrete, providing a reliable and secure fastening solution.

Corrosion Resistance: The zinc plating with passivation offers superior corrosion resistance, making them ideal for various environments.

Durable Construction: Crafted from cold-formed carbon steel (grade 5.8), these throughbolts are built to last and withstand demanding applications.

Efficient Installation: The special expansion clip ensures rapid and hassle-free installation, saving you time and effort.

Choose Throughbolts - Zinc (M10 x 100) for your anchoring needs, and enjoy the benefits of reliable, corrosion-resistant, and efficient fastening solutions.
