Product Code: HSSG4
Pack Type: Tube
Quantity: 1
Quantity Unit: Pieces

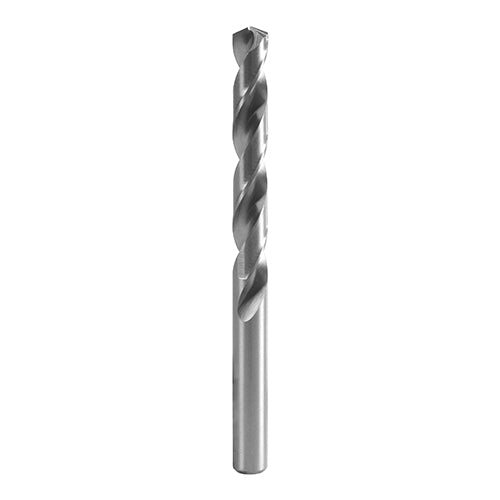

Manufactured from a high grade M2 tool steel. This durable engineering quality drill will give a consistent rapid performance into all non-alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
• Fully ground from solid material
• High grade M2 alloyed High Speed Steel (HSS)
• Manufactured to DIN 338
• Dimensionally precise
• High performance 135° split point tip eradicates the need to pre-drill/centre punch
• Fully ground from solid material
• High grade M2 alloyed High Speed Steel (HSS)
• Manufactured to DIN 338
• Dimensionally precise
• High performance 135° split point tip eradicates the need to pre-drill/centre punch
- PRODUCT SPECIFICATIONS
| Size (mm) | 4.0 x 75 |
| Drill Ø (mm) | 4 |
| Working L (mm) | 69 |
| Total L (mm) | 75 |
| Pack Type | Tube |
| Pack Qty | 1 |
| DIN | DIN 338 |
| Material | M2 Grade HSS Steel |
| Shank Type | Straight |
| Drill Tip | 135° Split |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals, Cast Iron |
| MOQ | 1 |
| MOQ Increment | 1 |
| Packs per Carton | 10 |
| Pack Weight (kg) | 0.084 |
| Pack Dimensions L x W x H (mm) | 24 x 45 x 100 |
