Product Code: 50070CLAF
Pack Type: Box
Quantity: 200
Quantity Unit: Pieces

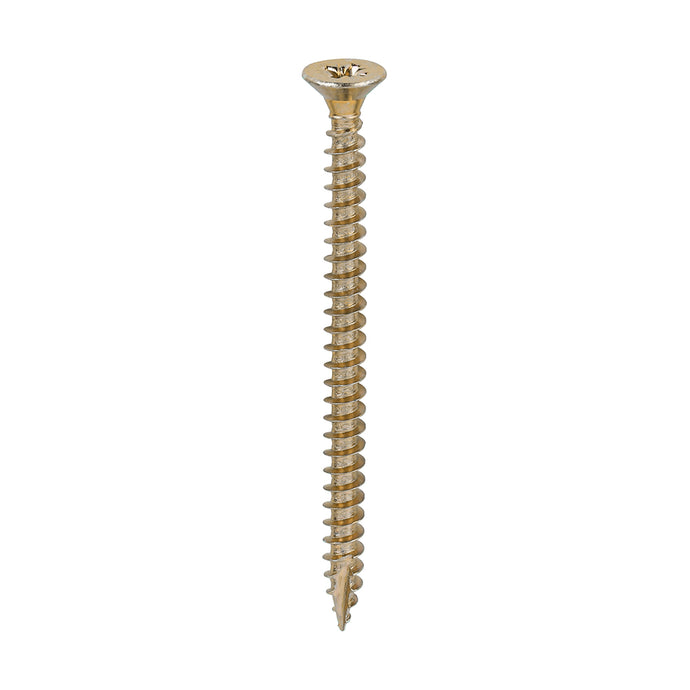

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
- PRODUCT SPECIFICATIONS
Size (mm) | 5.0 x 70 |
Thread Ø (mm) | 5 |
Driver Bit Size | PZ2 |
Packs per Carton | 35 |
Pack Qty | 200 |
Pack Type | Box |
Finish | Zinc & Yellow |
Recess Type | Pozi |
Head Type | Double Countersunk |
Thread L (mm) | 35 |
Thread Type | Single Coarse 40° |
Point Type | 25° Sharp with Single Slash |
Material | Carbon Steel |
Lubrication | Gleitmo |
Salt Spray Resistance (Hrs) Tested to BS EN 9227 | 504 |
Corrosion Rating (1-5) | 2 - Occasionally damp/wet, rural and sheltered areas |
Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
L (mm) | 70 |
MOQ | 1 |
MOQ Increment | 1 |
Head Ø (mm) | 9.74 |
Pack Weight (kg) | 0.74 |
Pack Dimensions L x W x H (mm) | 95 x 90 x 60 |
