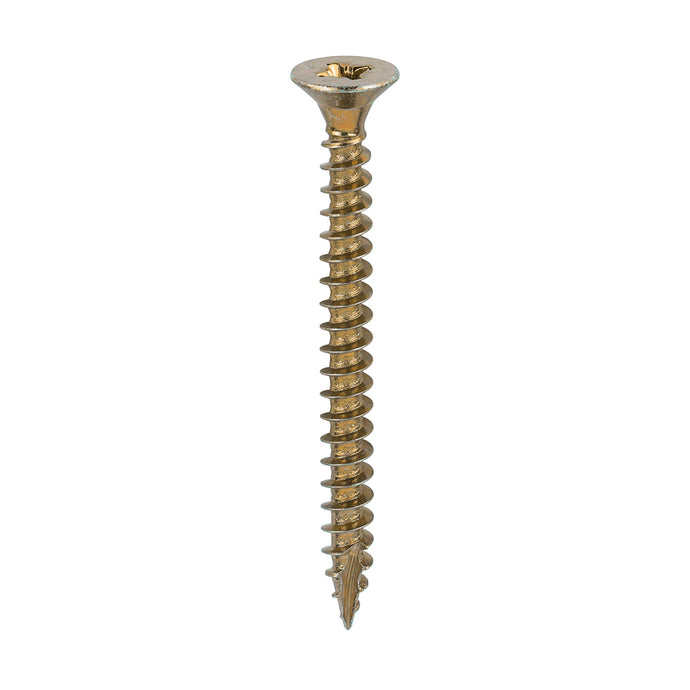

TIMCO 5.0 x 60 - Classic Multi-Purpose Screws - PZ - Double Countersunk - Yellow

Vendor
TimCo
Regular price
€8,90
Sale price
€8,90
Regular price
Sold out
Unit price
per
VAT EXCLUDED

Product Code: 50060CLAF
Pack Type: Box
Quantity: 200
Quantity Unit: Pieces

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Size (mm) 5.0 x 60
Thread Ø (mm) 5
Driver Bit Size PZ2
Packs per Carton 35
Pack Qty 200
Pack Type Box
Finish Zinc & Yellow
Recess Type Pozi
Head Type Double Countersunk
Thread L (mm) 35
Thread Type Single Coarse 40°
Point Type 25° Sharp with Single Slash
Material Carbon Steel
Lubrication Gleitmo
Salt Spray Resistance (Hrs) Tested to BS EN 9227 504
Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
L (mm) 60
MOQ 1
MOQ Increment 1
Head Ø (mm) 9.74
Pack Weight (kg) 0.74
Pack Dimensions L x W x H (mm) 95 x 90 x 60
