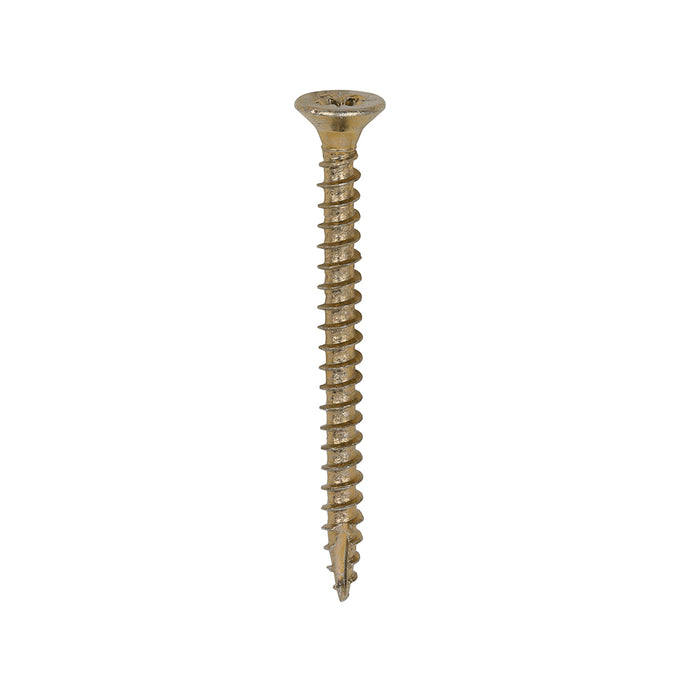

Classic Multi-Purpose Screws - PZ - Double Countersunk - Yellow
- Product Code: 30035CLAF
- Pack Type: Box
- Pack Quantity: 200 Pieces
- Barcode: 5055017507047
Our Classic Multi-Purpose Screws, featuring a PZ drive and a double countersunk head with a vibrant yellow finish, are the ultimate solution for versatile applications. Crafted with precision, these screws exhibit a 25° sharp point, special thread design, patented lubrication, and corrosion-resistant plating. This combination ensures consistent, efficient performance across hardwood, chipboard, MDF, plastic, and thin sheet metal, all while delivering exceptional holding power.
- Double countersunk head reduces the likelihood of head shear and facilitates countersinking.
- Patented lubrication enhances screw insertion speed and provides superior resistance to corrosion.
- A deep, single-thread configuration at a 40° angle ensures a secure fastening with outstanding pull-out resistance.
- Surface hardening up to 750 HV prevents torque shearing under load, with a core hardness of up to 450 HV for improved ductility.
- Screws measuring 25mm and longer feature a single slash, reducing torque and the risk of timber splitting when inserted close to the edge.
- All sizes up to and including 75mm are fully threaded, while lengths of 80mm and above all have a 70mm thread length.
- Brand: TIMCO
- Corrosion Rating (1-5): 2 - Occasionally damp/wet, rural and sheltered areas
- Driver Bit Size: PZ1
- Feature 1: Double countersunk reduces the likelihood of head shear and assists completion of countersinking.
- Feature 2: Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion.
- Feature 3: 40° deep single thread to provide a secure fixing with high pull-out resistance.
- Feature 4: Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility.
- Feature 5: Single slash on 25mm+ screws reduces torque and the likelihood of the timber splitting when the screw is inserted close to the edge.
- Feature 6: All sizes up to and including 75mm are fully threaded, and lengths 80mm and above all have a 70mm thread length.
- Finish: Zinc & Yellow
- Head Type: Double Countersunk
- Inner Thread Ø d1 (mm): 2
- L (mm): 35
- Lubrication: Gleitmo
- Material: Carbon Steel
- MOQ: 1
- MOQ Increment: 1
- Pack Qty: 200
- Pack Type: Box
- Packs per Carton: 50
- Point Type: 25° Sharp with Single Slash
- Recess Type: Pozi
- Size (mm): 3.0 x 35
- Substrates: Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
- Thread Coverage: Fully Threaded
- Thread L (mm): 30
- Thread Ø (mm): 3
- Thread Type: Single Coarse 40°
Elevate your fastening projects with our Classic Multi-Purpose Screws. Designed for versatility and reliability, these screws deliver exceptional holding power across various materials, ensuring your projects are built to last.
