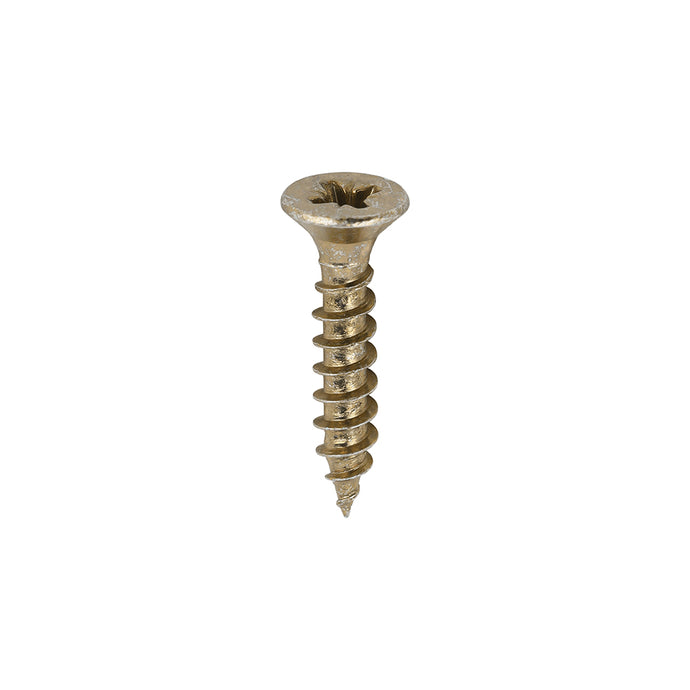

Classic Multi-Purpose Screws - PZ - Double Countersunk - Yellow
- Product Code: 30016CLAF
- Pack Type: Box
- Pack Quantity: 200 Pieces
- Barcode: 5055017507009
Product Overview:
Our Classic Multi-Purpose Screws, equipped with a PZ drive and a double countersunk head featuring a striking yellow finish, are meticulously engineered for versatile performance. With a 25° sharp point, special thread design, patented lubrication, and corrosion-resistant plating, these screws consistently deliver efficient results in various materials, including hardwood, chipboard, MDF, plastic, and thin sheet metal. Please note that these screws have a sharp point.
Key Features:
- Double countersunk design reduces the likelihood of head shear and aids in completing countersinking.
- Patented lubrication enhances screw insertion speed and provides superior resistance to corrosion.
- A deep, single-thread configuration at a 40° angle ensures a secure fastening with exceptional pull-out resistance.
- Surface hardening up to 750 HV prevents torque shearing under load, while a core hardness of up to 450 HV enhances ductility.
- All sizes up to and including 75mm are fully threaded, while lengths of 80mm and above all have a 70mm thread length.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 2 - Occasionally damp/wet, rural and sheltered areas
- Driver Bit Size: PZ1
- Feature 1: Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- Feature 2: Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
- Feature 3: 40° deep single thread to provide a secure fixing with high pull-out resistance
- Feature 4: Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
- Feature 5: All sizes up to and including 75mm are fully threaded, and lengths 80mm and above all have a 70mm thread length
- Finish: Zinc & Yellow
- Head Type: Double Countersunk
- Inner Thread Ø d1 (mm): 2
- L (mm): 16
- Lubrication: Gleitmo
- Material: Carbon Steel
- MOQ: 1
- MOQ Increment: 1
- Pack Qty: 200
- Pack Type: Box
- Packs per Carton: 140
- Point Type: 25° Sharp
- Recess Type: Pozi
- Size (mm): 3.0 x 16
- Substrates: Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
- Thread Coverage: Fully Threaded
- Thread L (mm): 11
- Thread Ø (mm): 3
- Thread Type: Single Coarse 40°
Elevate your fastening solutions with our versatile Classic Multi-Purpose Screws, engineered for top-notch performance across a variety of materials. Their innovative design, lubrication, and corrosion resistance make them a reliable choice for a wide range of applications.
