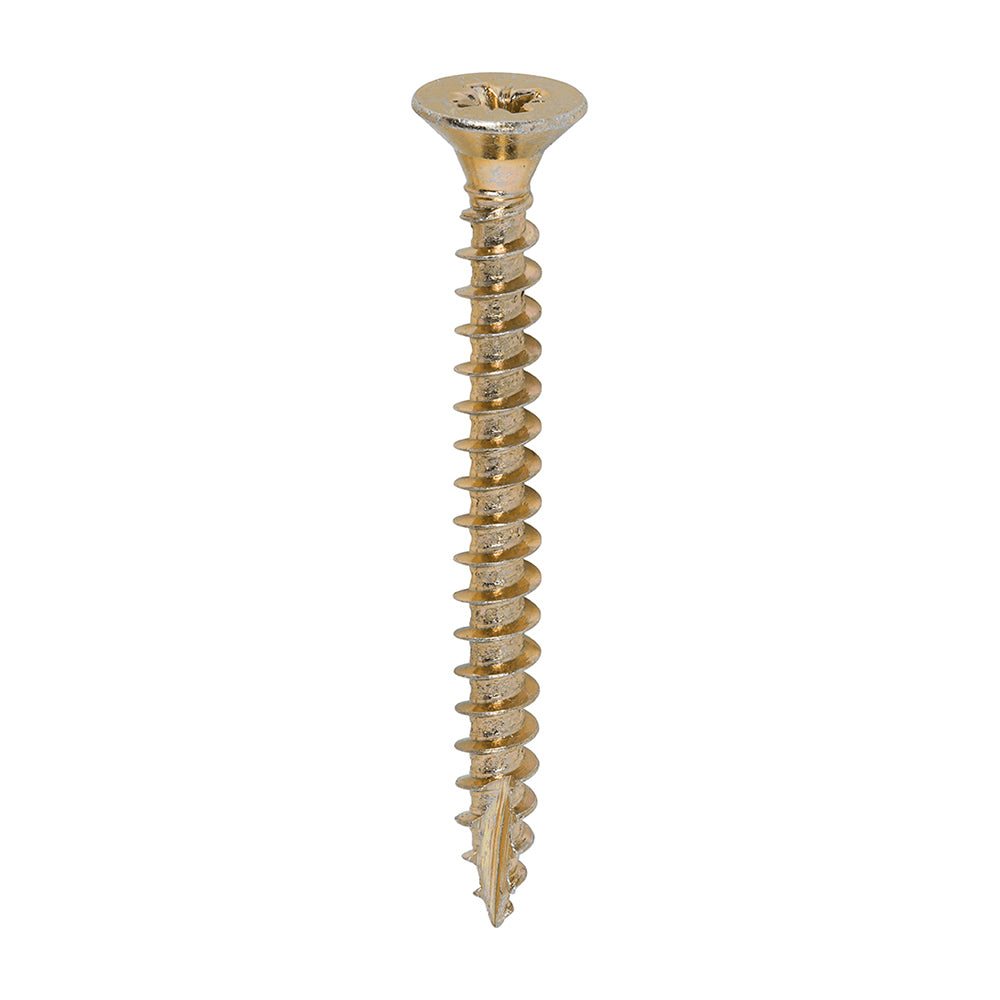

TIMCO 5.0 x 50 Classic Multi Purpose Cut Screws PZ Screw (200)

DESCRIPTION

Product Code: 50050claf

Pack Type: Box

Quantity: 200

Quantity Unit: Pieces

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

• PRODUCT SPECIFICATIONS

Size (mm)	5.0 x 50
Thread Ø (mm)	5
Driver Bit Size	PZ2
Packs per Carton	35
Pack Qty	200
Pack Type	Box
Finish	Zinc & Yellow
Recess Type	Pozi
Head Type	Double Countersunk
Thread L (mm)	35
Thread Type	Single Coarse 40°
Point Type	25° Sharp with Single Slash
Material	Carbon Steel
Lubrication	Gleitmo
Salt Spray Resistance (Hrs) Tested to BS EN 9227	504
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
L (mm)	50
MOQ	1
MOQ Increment	1
Head Ø (mm)	9.74
Pack Weight (kg)	0.74
Pack Dimensions L x W x H (mm)	95 x 90 x 60
