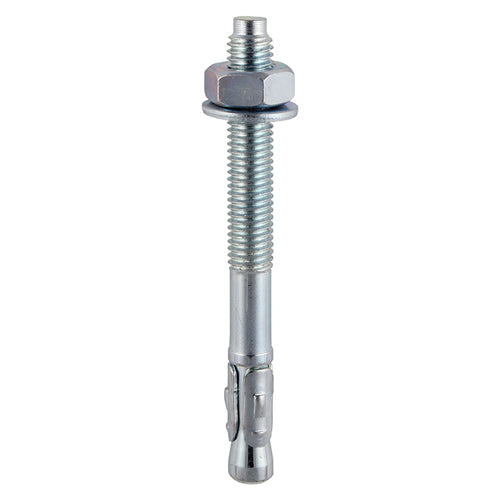

TIMCO TRU BOLT M16 x 150 - Zinc (15)

Throughbolts - Zinc (M16 x 150)

• Product Code: 16150TB
• Pack Type: Box
• Pack Quantity: 15 Pieces
• Barcode: 5055331820471

Product Overview: The 16150TB Throughbolts are versatile and torque-controlled fasteners designed for a wide range of anchoring applications in concrete. Each set includes hex full nuts and washers for comprehensive installation. Note: In the absence of a torque wrench, tighten the nut by 3 to 4 full turns from finger-tight.

Key Features:

• Chamfered head design prevents thread damage during installation.
• Zinc plated and passivated (3-5 microns) for superior corrosion resistance.
• Crafted from cold-formed carbon steel (grade 5.8) for durability.
• Special expansion clip ensures swift and reliable installation.

Product Specifications:

• Brand: TIMCO
• Corrosion Rating (1-5): 1 (Clean, dry & low humidity environments)
• DIN: DIN 125-A, DIN 934
• Finish: Zinc
• Fixture Hole Size Ø (mm): 18
• Head Type: Chamfered
• Included Items: M16 Hex Full Nuts & Form A Washers
• Material: Carbon Steel
• MFT (mm): 45
• MOQ: 1
• MOQ Increment: 1
• Nut Size (mm): M16
• Nut Socket Size (mm): 24
• Nut Type: Hex Full
• Pack Dimensions (mm): 162 x 140 x 84
• Pack Weight (kg): 3.61
• Pack Qty: 15
• Pack Type: Box
• Packs per Carton: 6
• Packs per Pallet: 192
• Substrates: Concrete
• Thread Coverage: Fully Threaded
• Thread Ø (mm): M16
• Thread Ø x L (mm): M16 x 150
• Thread Type: Metric
• Washer Size (mm): M16 x 30
• Washer Type: Form A

The 16150TB Throughbolts offer reliable and sturdy anchoring solutions for concrete applications. With features like chamfered heads and special expansion clips, they ensure secure and rapid installation while providing excellent corrosion resistance.
